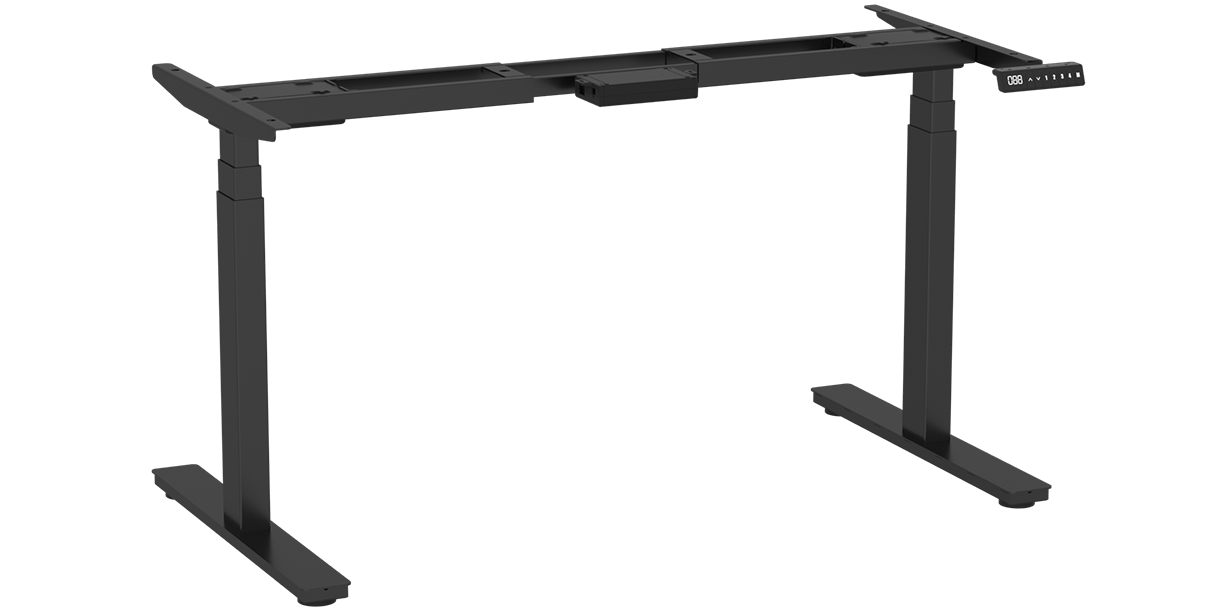

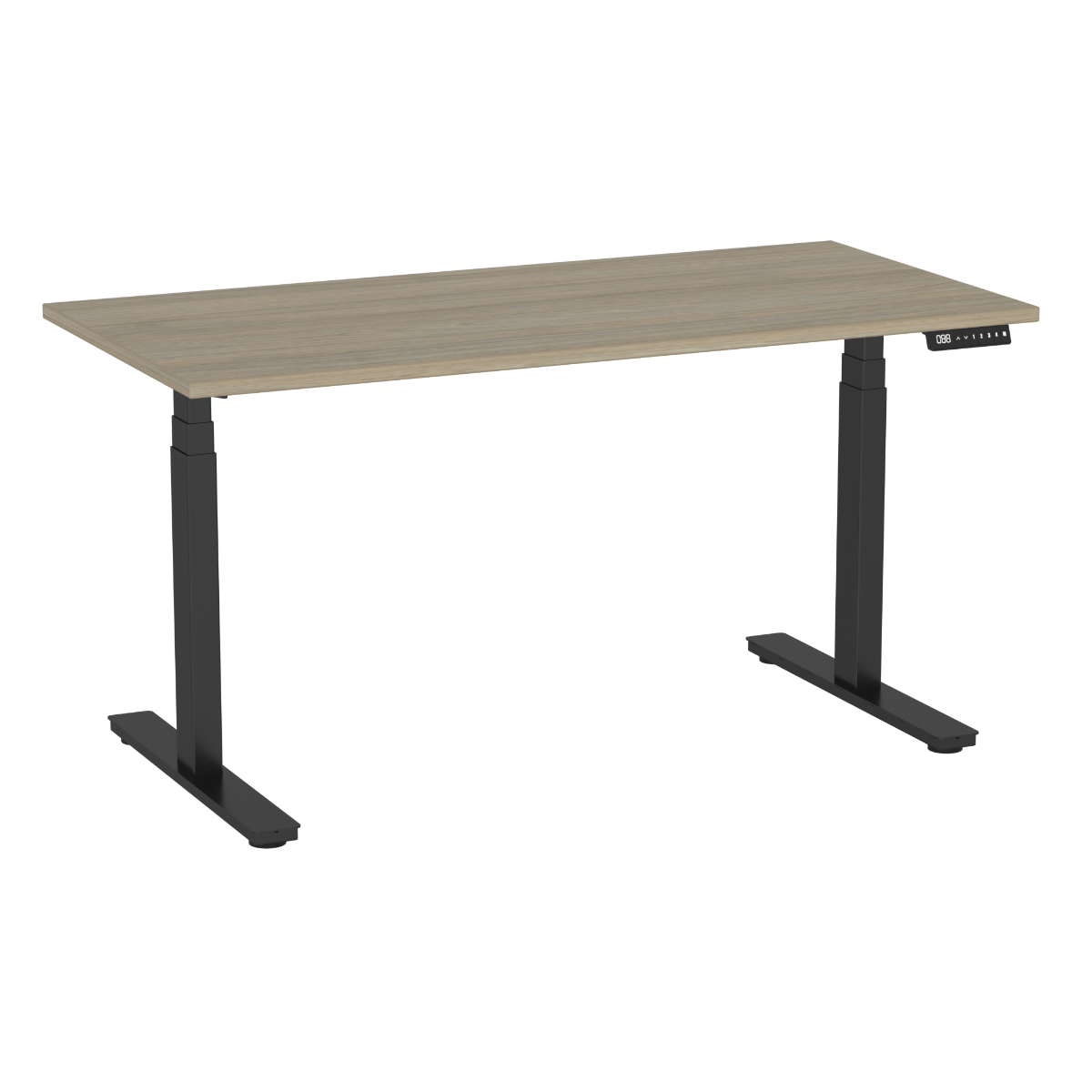

The Smart is unique because of its simple design. This model has rectangular columns, making it perfect to combine with our Smart DUO bench frame. This model comes with a 5 year warranty.
LIFTING SYSTEM TECHNICAL PARAMETERS
Leg orientation: rectangular
Height adjustable range: 625-1275 mm
Width adjustable range: 1075 - 1800 mm
Lenght bracket: 600 mm
Lenght foot: 700 mm
Foot type: flat foot
Max. lifting capacity: 120 kg
Warranty period: 5 years
Noise Level: <45 db
Max. speed: 40 mm/s
- TDH6 handset including 4 memory positions
- integrated TCS1 sensitive anti-collision sensor
- Timotion Technology motors, control box & handset
- aluminum RAL9006
- white RAL9010
- black RAL9005
Units per box: 1 unit
Sizes: 108 (L) x 32 (W) x 22 (H) cm
Gross weight: 30 kg
Click on the icon below to see more
Together with our logistics partners, we strive to deliver all products throughout Europe within 5 working days after shipment from our warehouse. In terms of transport, we offer two options from which you can choose during the ordering process;
Option 1 -DAP incoterms:
In this option we take care of the transport by using one of our logistics partners. The transport costs will be communicated prior to booking the transport so that you will not be faced with any surprises.
Option 2 - EXW incoterms:
With this option you take care of the transport yourself. In consultation, we will ensure that your shipment is ready when your logistics partner has planned the pick up from our warehouse.
If you have any questions about the logistics process, please contact us via [email protected] or +31 475 729 890.
